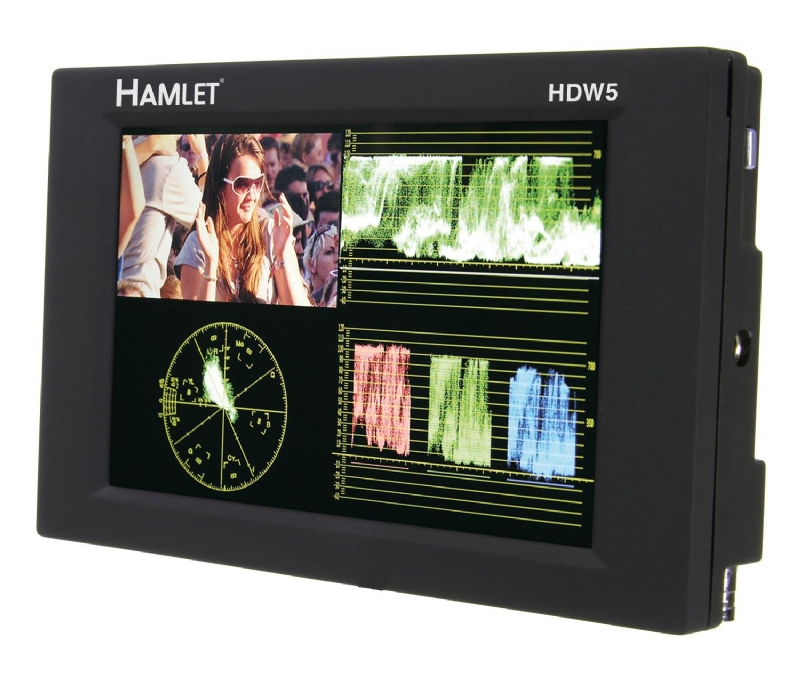

Hamlet Precision HDW5 Quality Monitor
Hamlet Precision HDW5 Quality Monitor

Precision HDW5

  • 1280 x 800 HD panel
  • Quality 1H Waveform, RGB Parade and Vector Scope in tiled display with picture or full screen
  • False colour with adjustable under luminance and over luminance warning
  • Convenient 4 user set-up/recall buttons
  • Clip guide with adjustable threshold
  • Peaking with red outline
  • False colour with user adjustable under luminance and over luminance warning
  • Red, Green or Blue gun only displays
  • DSLR Scaling (HDMI only)
  • Headphone jack
  • Mount from any side

 Video Inputs

  • 3G, HD-SDI, SD-SDI input with loop-through
  • HDMI

 Flexible Battery System

  • Sony ‘L’ & BP-U’ Compatible
  • Panasonic ‘D54’ Compatible
  • Canon ‘900’ & ‘E-6’ Compatible
Purchase this Product >>

£955 ex VAT

General Information

Designed with professionals in mind, the HDW5 hi-resolution 1280 x 800 HD panel offers extremely vivid, clear pictures and a stable response time, displaying consistent and accurate colour from all viewing angles. With the addition of waveform, vectorscope, RGB parade it ensures you meet the compliance level you wish. The outstanding screen performance and key video assist features also makes getting the shot right first time an easy task. Mount on any side, set up the 3 user customized function buttons with the thumbwheel selector and you are good to go.

The HDW5 has complimentary input/outputs of 3G-SDI, HD-SDI, SD-SDI and HDMI in on those standards, as well as a headphone output.

HD Resolution

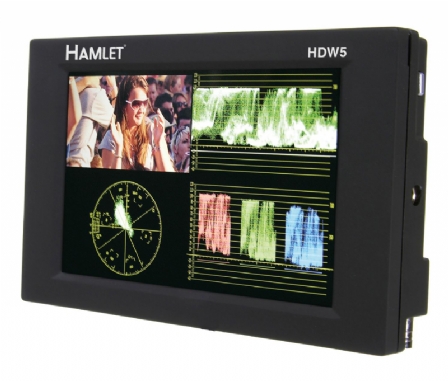

The Precision HDW5 has a 5.6-inch screen with 1280 X 800 HD resolution - so what you see is what you get! It’s output is clear and crisp, which with the aid of the video assist features below means less time in post.

Waveform
This essential video assist aids calibration of cameras and systems. It details the overall signal levels from below black to above white, enabling peak levels, contrast, crushing and even focus of the image to be maintained and corrected where necessary – giving the professional correct exposure. The waveform is also handy when checking evenness of lighting when shooting chromakey.

Vectorscope
Another essential – to aid in assessing camera matching, white and black balance, skin tone verification, colour cast, tint or hue error. Check that your are broadcast safe with 75% colour bars.

RGB Parade
This splits the signal and displays into the red, green and blue components making it easier to asses balance a shot. Furthermore, this feature helps the video professional to instantly see what colour cast might be in an image; thus, making it extremely helpful when verifying the white balance.

Small Lightweight Design

You won’t get weighted down by this field monitor, weighing in at just 272g (0.6 pounds)! Even hand held rigs are easy to handle. It’s compact size makes it a breeze to use, pack, ship and carry.

Advanced Software Features
Loaded with advanced software video assist features the HDW5 enables the set-up and recall of false colour, monochrome, peaking, clip guide, underscan, gun selection, safe areas, cross hair, colour temperature, horizontal and vertical delay, movable pixel-to-pixel and DSLR scaling,

Hamlet equipment is aimed at helping you perform better, shoot quicker and achieve better results. With the features built into the Precision HDW5 we believe your creative path should be smoother with superior results. Having a great chart like the ones form DSC Labs is also suggested. As always with Hamlet solutions we try to include all the video assist features you need at a cost effective price.

Features and functions

1280 x 800 HD panel

Quality 1H Waveform, RGB Parade and Vector Scope in tiled display with picture or full screen

False colour with adjustable under luminance and over luminance warning

Convenient 4 user set-up/recall buttons

HDMI input

3G, HD-SDI, SD-SDI input with loop-through

Clip guide with adjustable threshold

Peaking with red outline

User set adjustable clip guide threshold. Focus Peaking with colour outline

False colour with user adjustable under luminance and over luminance warning

Underscan

Red, Green or Blue gun only displays

DSLR Scaling (HDMI only)

Headphone jack

Mount from any side

1 year back to base warranty

Flexible Battery System choose from one of the following battery plates:

BPSL (Sony L)
BPSU (Sony BP-U)
BPPD (Panasonic D54)
BPPG (Panasonic G6)
BPC9  (Canon 900 series)
BPCD (Canon 5D & 7D style battery)

Specifications

DISPLAY

Diagonal (inch): 5.6-inch

Resolution: 1280 X 800

Contrast Ratio: 400:1

LCD Brightness: 300 NIT

Viewing angles: 160(H) 160 (V)



INPUT

3G, HD-SDI, HDMI



OUTPUTS

Video Outputs: HD-SDI

Audio Output: Headphone

POWER

Operating Volts: DC6 to 24V



PHYSICAL

DIMENSIONS: - 4.1"H x 6.5"W x 0.9"D.

WEIGHT: - 272g, 0.6lbs.

SHIPPING WEIGHT: - 1.4Kg, 3 lbs



WARRANTY: - 1 Year.

Extendable free on registration: - To 2 Years

By using the service area of our web site



SUPPORTED RESOLUTIONS & FRAME RATES

3G SDI:

1920x1080p @ 50, 59.94, 60 Hz

HD SDI:

1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz

SD SDI:

720x480i @ 60Hz
720x576i @ 50Hz

HDMI:

720x480i & 720x480p @ 59.94, 60 Hz

720x576i & 720x576p @ 50 Hz

1280x720p @ 50, 59.94, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 24, 25, 29.97, 30 Hz

1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz



Ordering

Precision HDW5

5.6" HD-SDI Hi-Def LCD Monitor

Standard 1 Years warranty.

Also choose from one of the following battery plates:

BPSL (Sony L)
BPSU (Sony BP-U)
BPPD (Panasonic D54)
BPPG (Panasonic G6)
BPC9  (Canon 900 series)
BPCD (Canon 5D & 7D style battery)

FAQs

Which side is the mounting hole on the HDW5?

there is a mounting hole on each side
