  • Colour display modes: 625/525 SD, PAL/NTSC.
  • Auto-detection of video signal presence switches power; 2+ years of battery life in standby.
  • SD SDI & composite input with 75-ohm termination.
  • TFT 234x600 pixel LCD
  • IP65 Alloy/Rubber slim, rugged case
Enquire About this Product >>

General Information

This product is covered by our one year service warranty from the date of purchase. Subsequent "Full Service Backup" is offered by Hamlet and available as with all Hamlet products.

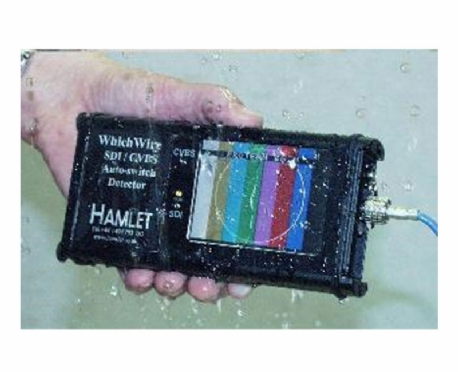

When you’re at the back of a bay, the truck, in a cable duct or OB and you have some cables in a loom - but don’t know which wire is which – that’s when you reach for your Hamlet WhichWire conveniently compact the WhichWire is both rugged and waterproof. Its rustproof alloy enclosure is built to absorb every day knocks and bumps. User safety is paramount, so this battery powered unit can be used confidently in environments such as un-grounded bays and in pouring rain. The case is sealed to the highest IP65 waterproof standards. With one BNC input socket automatic detection of SD SDI or composite input video signal is indicated on LEDs. An indication is also provided of the SD SDI signal’s nominal cable length on one of two LEDs for less than 100M or greater than 100M. WhichWire automatically powers up on detection of SD SDI or composite video. Powered by easily changed, universally available AA cells. Hamlet thoroughly recommends fitting high-energy Alkaline cells. Safety is paramount, especially in the rain!

Features and functions

• Compact battery powered 3.5” TFT 234x600 pixel LCD in a slim, rugged, IP65 Alloy/Rubber case.
• Colour display modes: SD SDI, NTSC and PAL.
• Mono display modes: SECAM, PAL M, Y, AES (presence).
• Auto-detection of video signal presence switches power; 2+ years of battery life in standby.
• SD SDI & composite input with 75-ohm termination.
• Full adaptive SD SDI cable equalisation to 350M.
• RSSI indicator LED.
• TFT Screen protected by shatter proof and scratch resistant antiglare panel.
• Operational from -0º to +50º.
• Storage from -10º to + 80º.
• Physical: 167 x 85 x 35mm.
• Weight: 1 pound, 500 grams.

Specifications

DISPLAY
Compact battery powered 3.5" TFT 234 x 600-pixel LCD display, in a slim, rugged, IP65 Alloy/Rubber case.
Colour display modes: SDI, NTSC, PAL; Mono display modes:
SECAM, PAL M, Y, AES (presence). SDI jitter indication
Auto-detection of the video signal presence switches power; 2+ years of battery life in standby.

INPUT
270SDI & PAL inputs with 75-ohm termination. Full adaptive
SDI cable equalisation to 350 M, SDI cable length indication.
Demodulated SDI output signal option for WFM/Extn monitor.
Shatter proof and scratch resistant anti-glare panel protect LCD screen.
Stainless steel security ring fastening point for lanyard attachment.

OPERATIONAL
0o to +50o; Storage from -10o to + 80o

POWER
8 Alkaline AA batteries.
Tool-free battery changing.

PHYSICAL
DIMENSIONS: - 16.7 x 8.5 x 3.5 cm.
WEIGHT: - 500g.

WARRANTY: - 1 Year.
Extendable free on registration: - To 2 Years

Ordering

Order Reference    Description

WHICHWIRE DUAL

Option:

WW-PSU                   External PSU

WW-CC                     Protective carry case

FAQs

Documentation

Please find our links to futher information below :-

Datasheet - (PDF 0.1MB)

Operation manual - (PDF 0.2MB)

Connection Diagram - (PDF 0.1MB)

Front Panel Diagram - (PDF 0.1MB)
